An institutional space in Bhuj fostering craft, community, and artisan livelihoods
Project info
Semester
8
Category
Institution
Location
Bhuj, Gujarat
Timeline
4 Months
Ravanto is conceived as an institutional space for artisans in Bhuj, rooted in craft, community, and cultural continuity. The design responds to local context through materiality, climate sensitivity, and spatial organization that supports both learning and production.

Project Gallery












The process
Site Immersion & Context Study
Visited Bhuj and stayed on-site for 2–3 days to understand climate, culture, wind patterns, and the post-earthquake condition of the site, previously used as a construction debris dump.Program Development

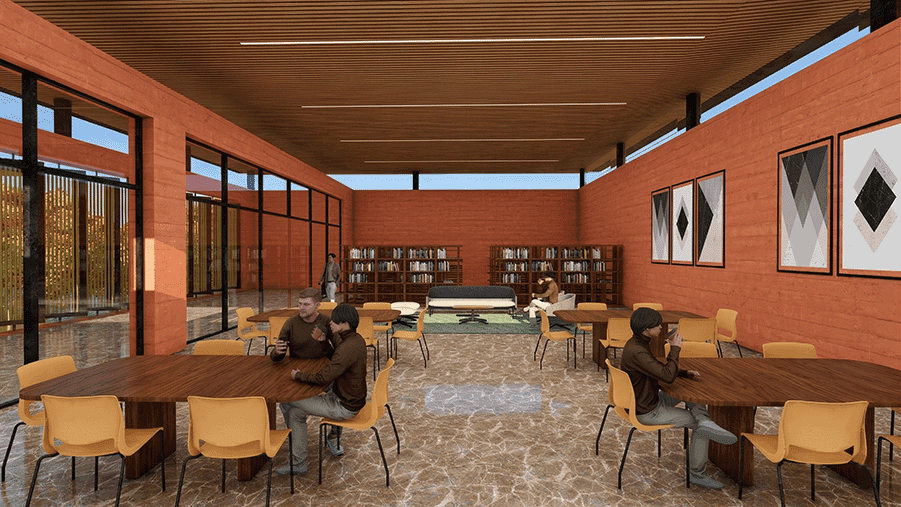

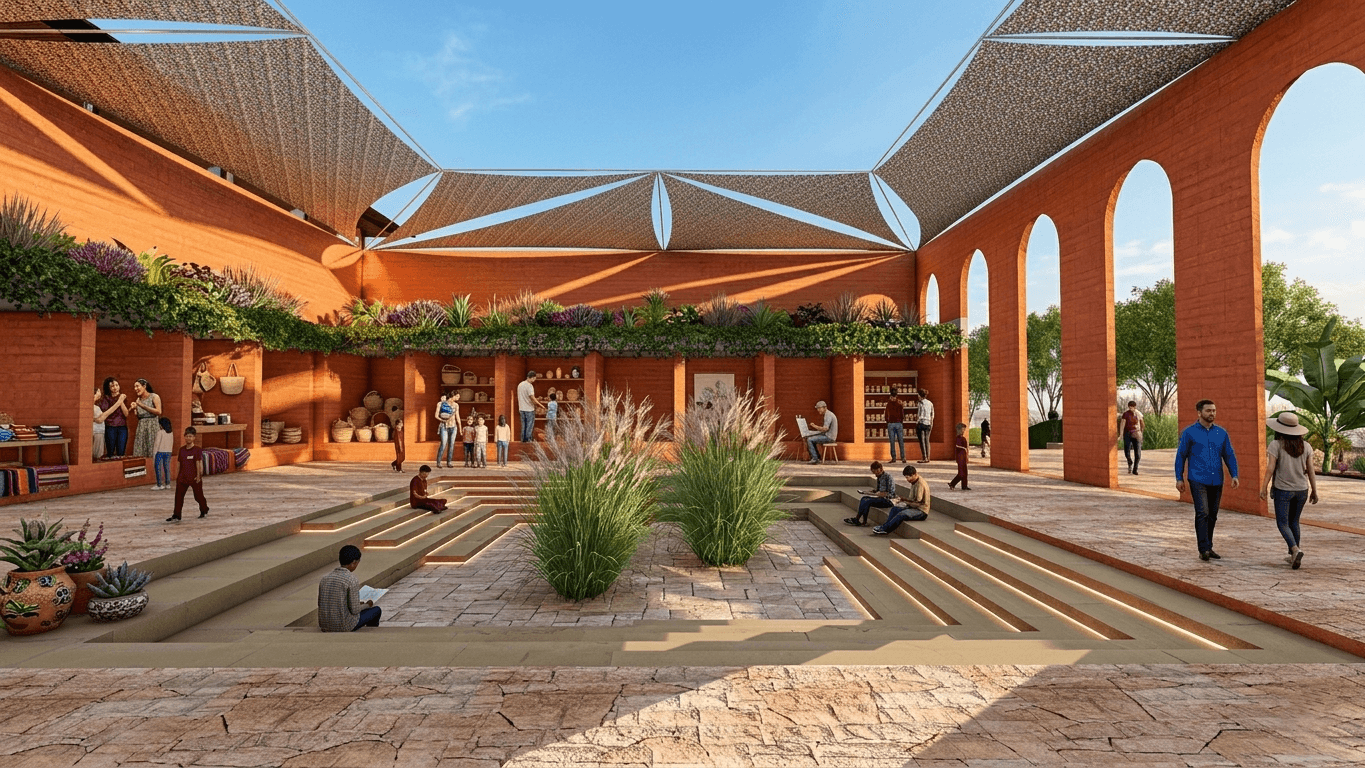

Based on contextual needs, developed a program combining cultural preservation and public engagement, including workshops (Ajrakh & block printing), classrooms, library, cafeteria, and a central courtyard with retail.Material Exploration – Debris Wall

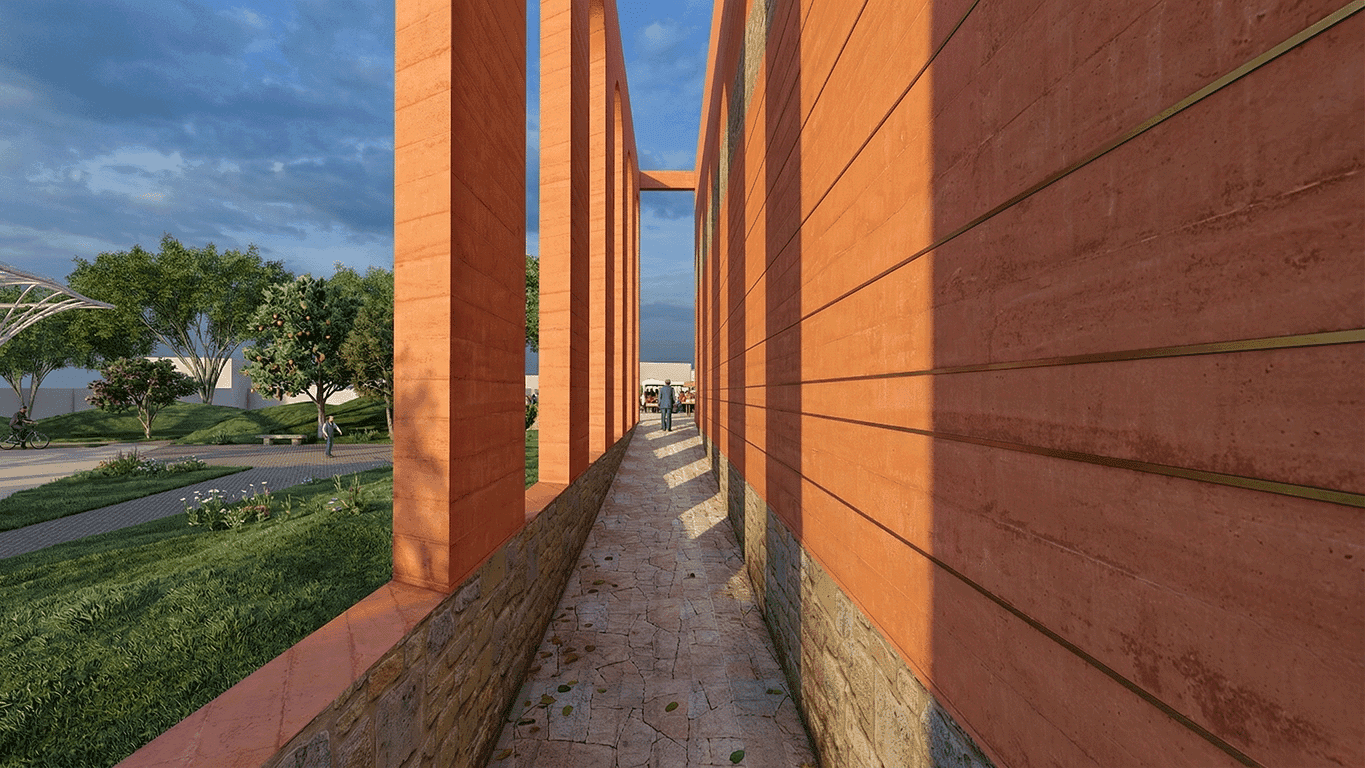

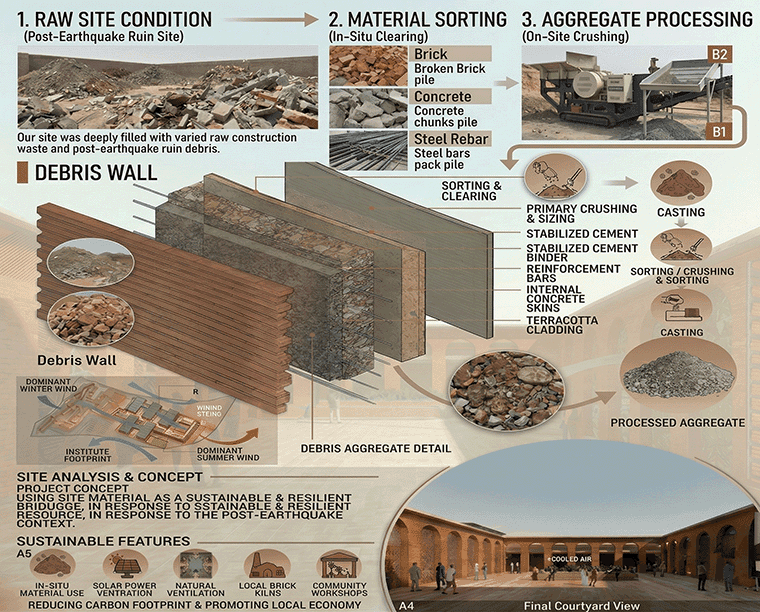

Reclaimed and treated construction waste from the site to create debris walls, transforming a post-disaster residue into a sustainable building material.Climate-Responsive Strategy

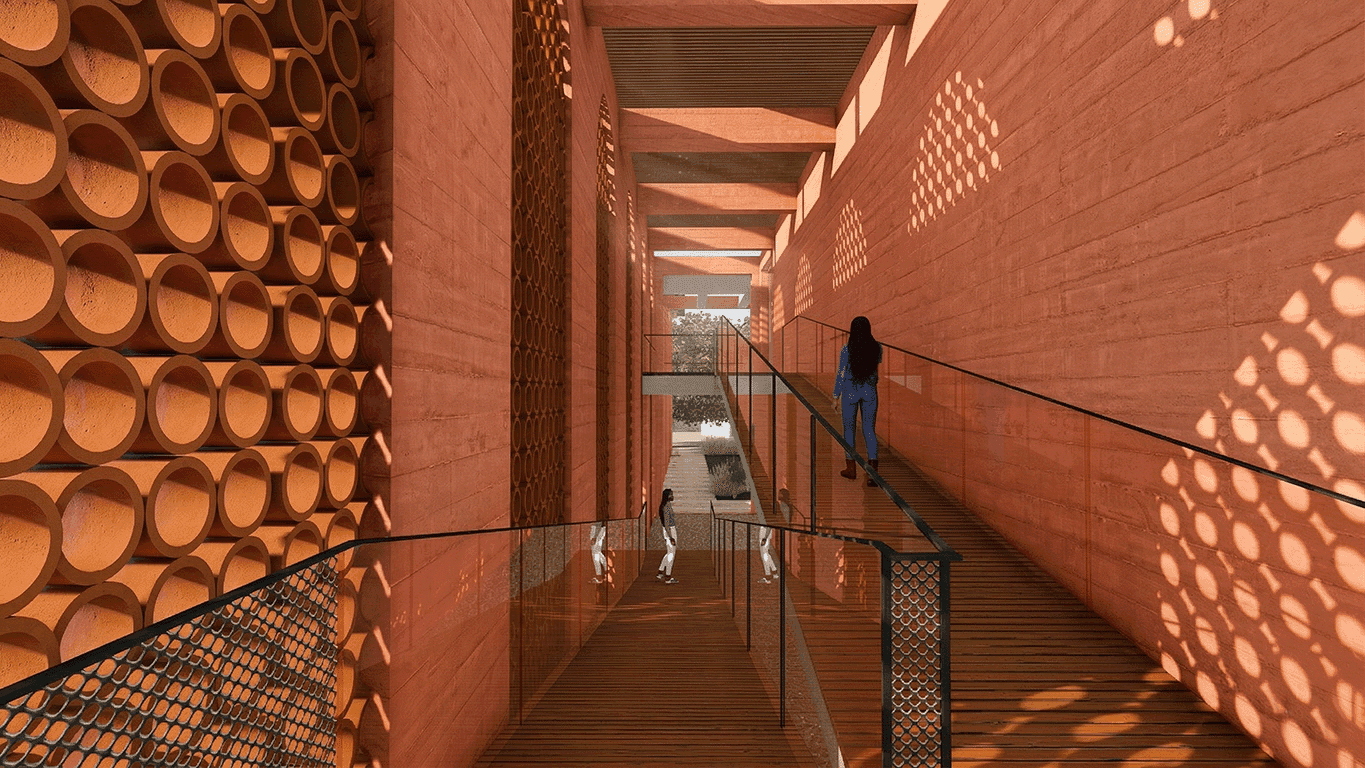

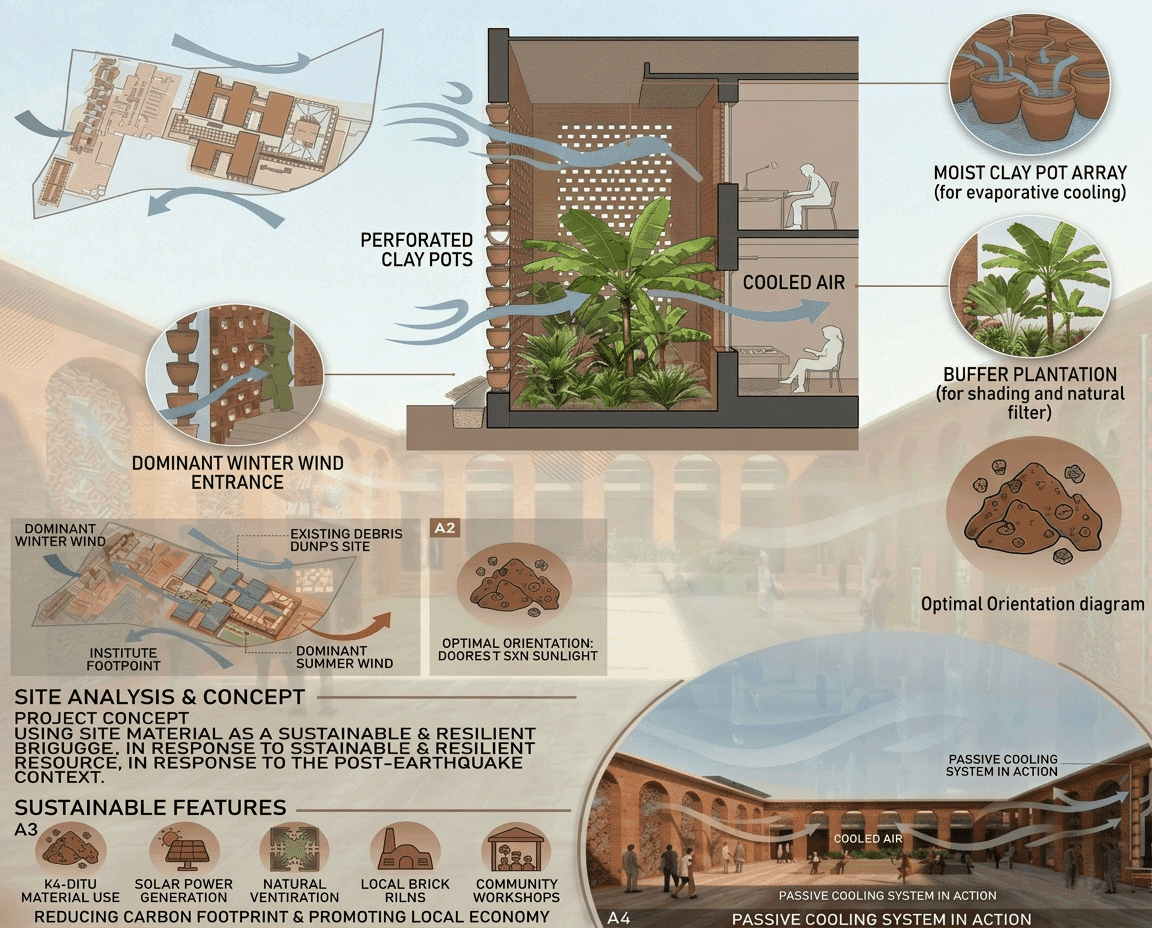

Designed passive cooling systems using buffer zones with plantations and moist earthen pots that cool incoming air naturally, eliminating the need for mechanical air conditioning.Spatial Planning & Buffering

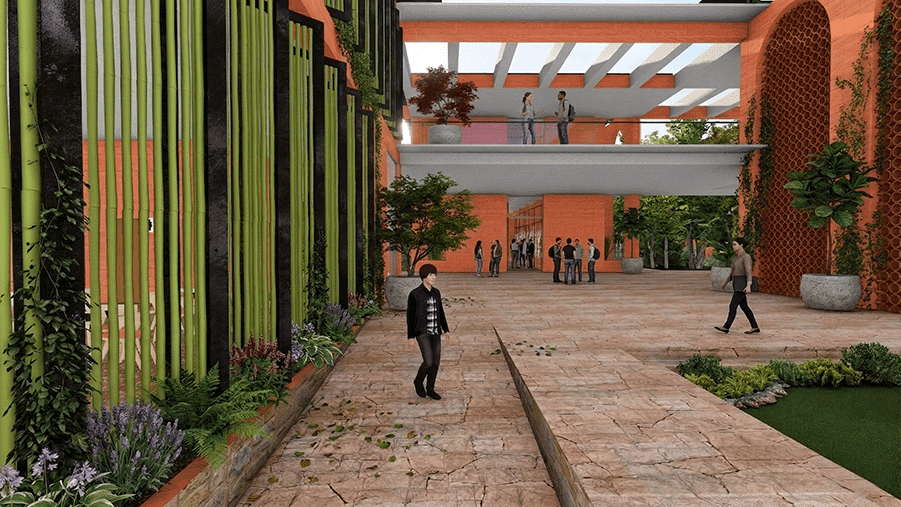

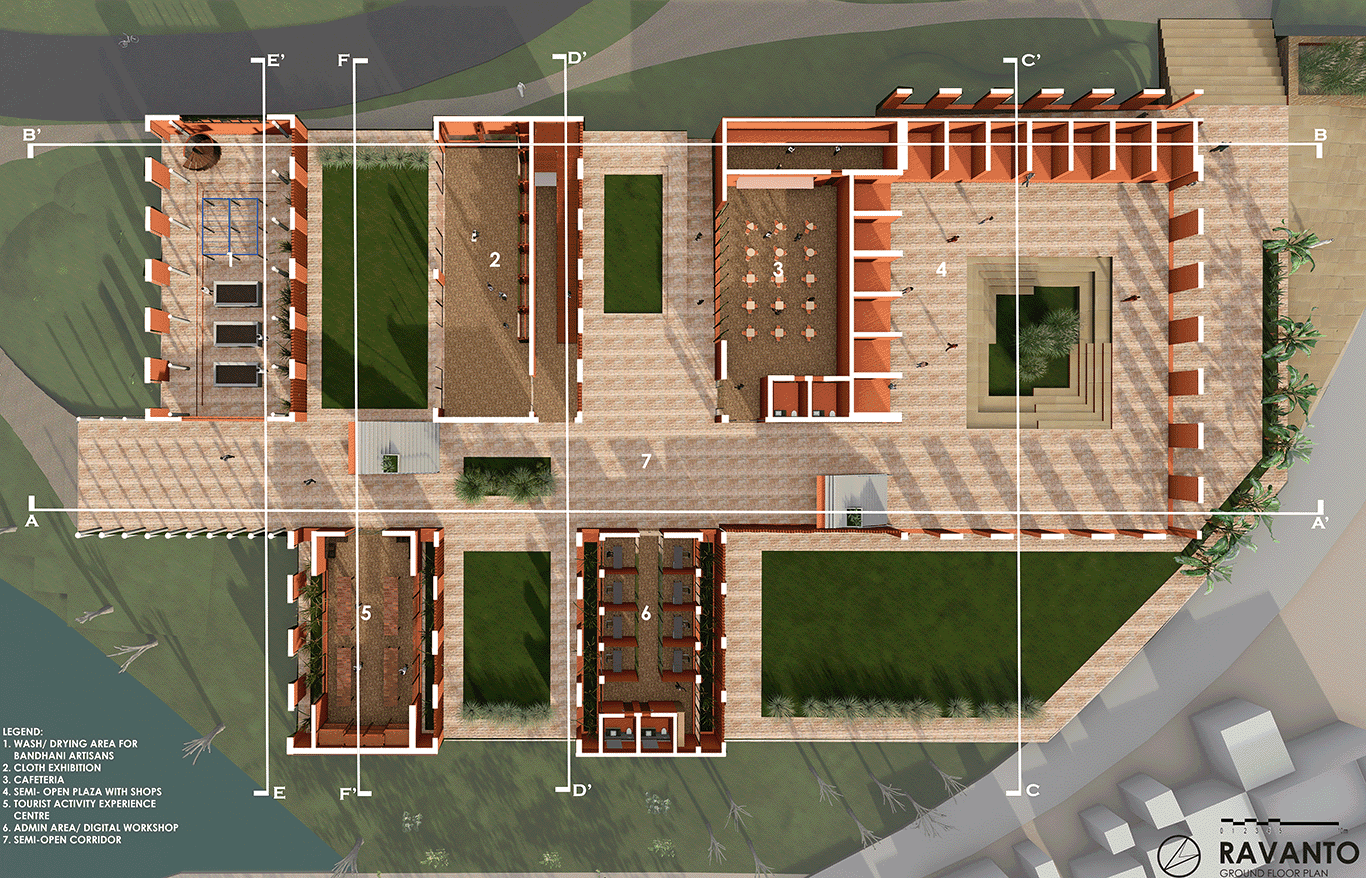

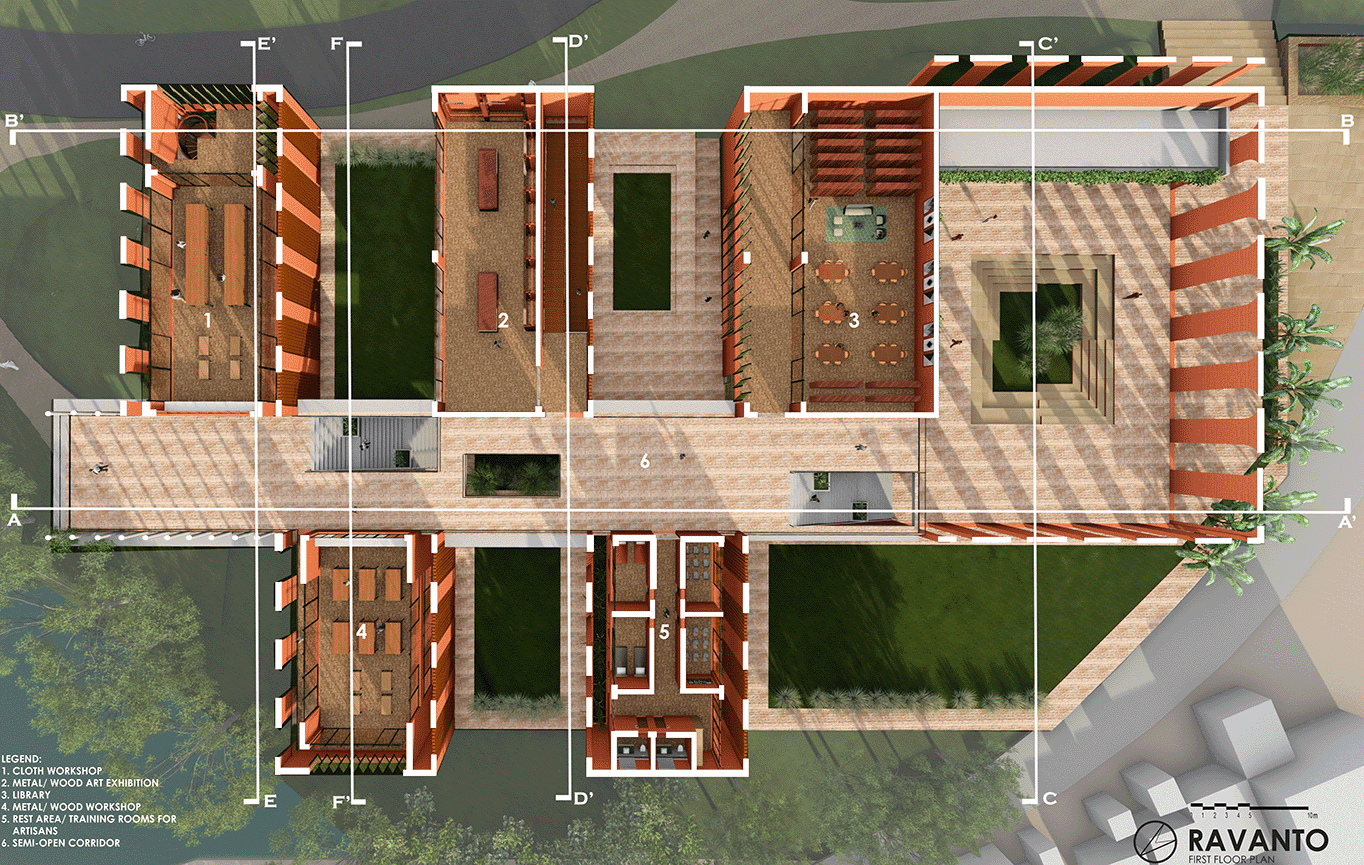

Organized spaces with transitional buffers around built areas to regulate temperature, reduce heat gain, and enhance comfort.Orientation & Environmental Response

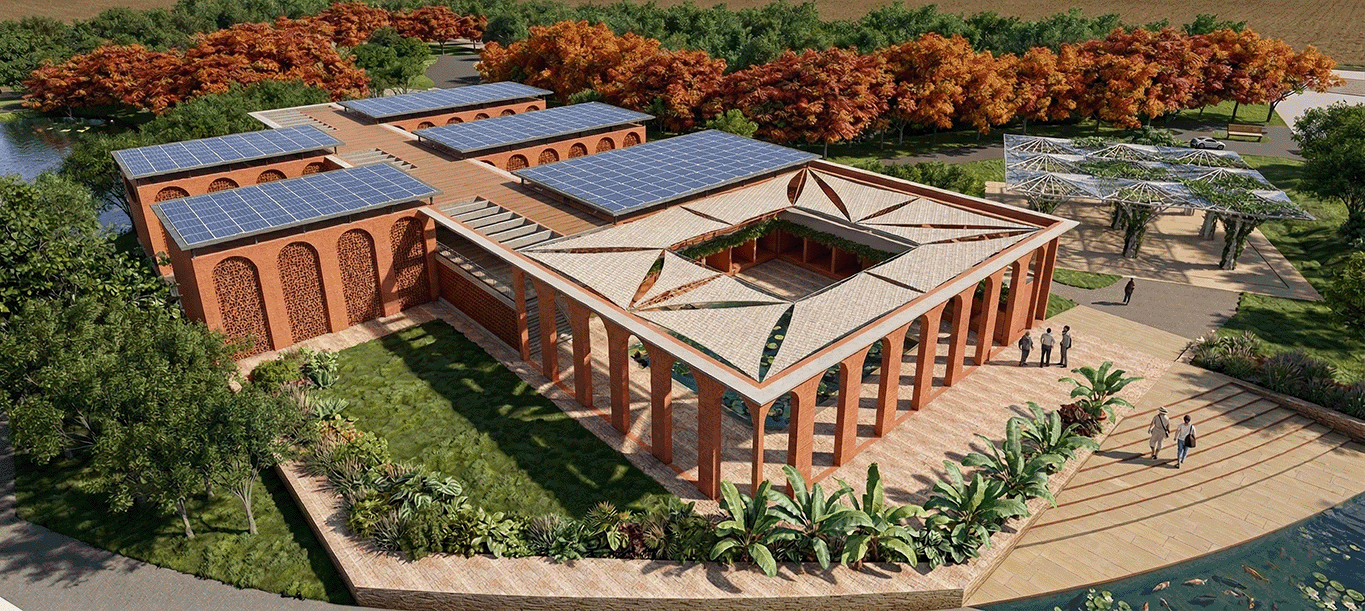

Oriented the built form to capture prevailing winds while minimizing harsh solar exposure, ensuring the building responds sensitively to Bhuj’s hot climate.
